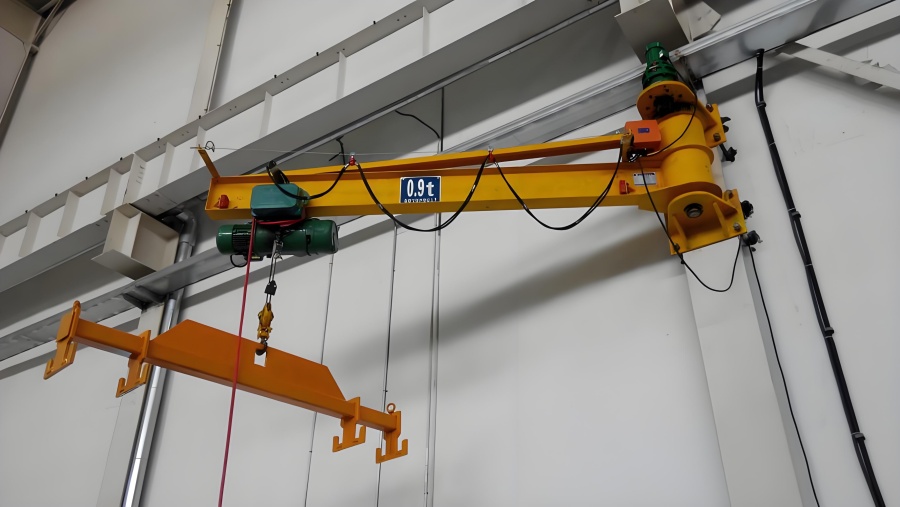

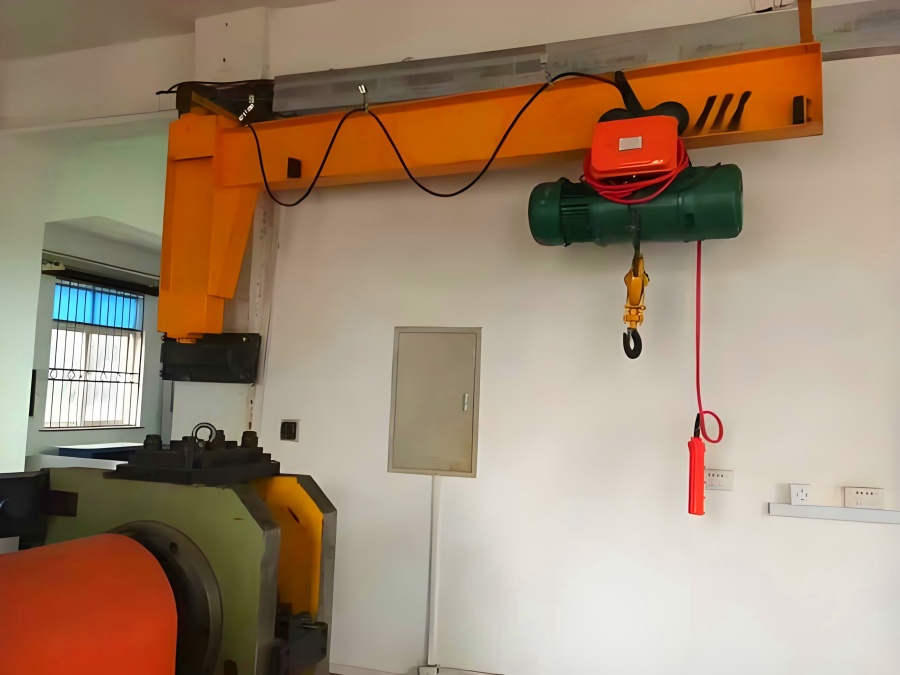

The BX type wall mounted jib crane (also known as wall mounted jib crane, wall mounted jib crane, wall mounted jib crane, wall mounted jib crane) is composed of a bracket, jib device, and electric hoist. The rotary arm is fixed on the wall or cement column and can rotate according to user needs. The rotating part is divided into manual rotation and electric rotation. The electric hoist is installed on the rotating arm track for lifting heavy objects.

The advantage of wall mounted jib crane is that it can be directly installed on walls or fixed columns, or can also be installed on machinery and equipment, without occupying any ground space.

Structure and operation
This machine mainly consists of 1. cantilever; 2. Rotating device; 3. Composed of electric hoist.
The electric hoist has the functions of lifting and reciprocating on the crossbeam.
The cantilever beam can be rotated by the roller driven by the reducer on the rotating device.
The electrical part is shown in the attached diagram: Electrical Principles and Wiring Diagram. The electrical control box is installed on the electric hoist.
The operation of this machine is achieved through the flashlight door button. The flashlight door has eight buttons that control fast rise, fast fall, slow rise, slow fall, left and right rotation, and the horizontal forward and backward movement of the hoist car.

产品型号		BX0.125	BX0.25	BX0.5	BX1	BX2	BX3
额定起重量（T）		0.125	0.25	0.5	1	2	3
起吊高度h（m）		3	3	3	3	3	3
回转半径L（m）		3 4 5 6	3 4 5 6	3 4 5 6	3 4 5 6	3 4 5 6	3 4 5 6
工作半径R2（m）		L－200mm
工作半径R1(m)		1	1	1	1	1 1.5 1.8
提升速度（m/min）		8/2	4/1，10/2.5	5/1.25，10/2.5	5/1.25 , 8/2	4/1	4
水平运行速度（m/min）		7，14，28
回转速度（r/min）		0.8
回转角度（°）		180
电机容量	回转电机（kw）	0.37	0.37	0.37 0.55	0.37 0.55	0.55 0.75 1.1	0.55 0.75 1.1
	起升电机（kw）	0.2/0.05	0.2/0.05, 0.5/0.13	0.5/0.13, 1.0/0.25	1.0/0.25, 1.5/0.35	1.5/0.35	2.3
	运行电机（kw）	0.14	0.14	0.14	0.2	0.2	0.4

Small light lifting equipment

1. Convenient installation
2. Little space occupation
